GM1-J85×15 Diaphragm Cylinder
This group of cylinders are pneumatic actuators for oil workover machines, including double-acting buffer type, single-acting bufferless type, and single-acting diaphragm type, with compact structure, small size, light weight, reliable work, and wide range of use.
Key words:
Category:
Pneumatic Components For Petroleum Equipment
Hotline：
Email：
GM1-J85×15 Diaphragm Cylinder
Detail
1. Characteristic:
This group of cylinders are pneumatic actuators for oil workover machines, including double-acting buffer type, single-acting bufferless type, and single-acting diaphragm type, with compact structure, small size, light weight, reliable work, and wide range of use.
2. Symbol:
CM1-j80 ×15 Single-Acting Diaphragm Cylinder
3. Technical Specification:
| instructions |
GH2 double acting buffer cylinder G1 single acting unbuffered cylinder CM1 single-acting diaphragm cylinder |
Z denotes hinge shaft installation J indicates the tripod installation |
Cylinder diameter and stroke 80*15 |
| Model |
GM1-J85×15 |
|
The cylinder diameter (mm) |
85 |
|
Itinerary (mm) |
15 |
|
Minimum working pressure(MPa) |
0.15 |
|
Leakage volume(Nml/min) |
0 |
|
Maximum operating pressure |
1.0 |
|
Operating temperature(℃) |
-25～60（Note: -40℃ low temperature resistant products need special customization） |
| Durable (10,000 times) |
100 |

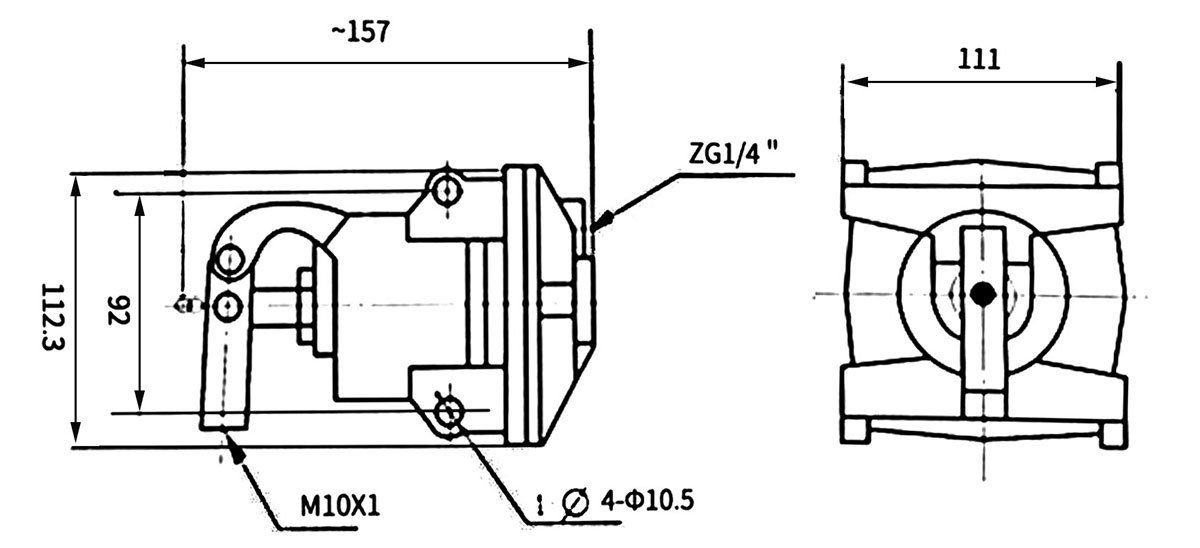

4. Outline and installation dimensions:
