23R1-L8 Two-Position Three-Way Push-Button Valve Series
The 23R1-L8 push button valve is suitable for remote control and closing of inlet and outlet in the pneumatic control system of oil rigs and geological exploration rigs, the valve can also be used in the pneumatic system of other equipment.
Key words:
Category:
Manual Control Valve
Hotline：
Email：
23R1-L8 Two-Position Three-Way Push-Button Valve Series
Detail
23R1-L8-D Positioning Pushbutton Valve QY430
23R1-L8-F Normally Closed Reset Button Valve QY429
23R1-L8-BF Normally Open Reset Push Button Valve
1. Characteristic:
The 23R1-L8 push button valve is suitable for remote control and closing of inlet and outlet in the pneumatic control system of oil rigs and geological exploration rigs, the valve can also be used in the pneumatic system of other equipment.
2. Technical Specification:
| Model |
23R1-L8-D |
23R1-L8-F |
23R1-L8-BF |
| Nominal diameter |
8mm |
||
|
S-value |
40mm² |
||
| Maximum working pressure |
0.8MPa |
||
| Operating temperature |
-25～60（Note: -40℃ low temperature resistant products need special customization） |
||

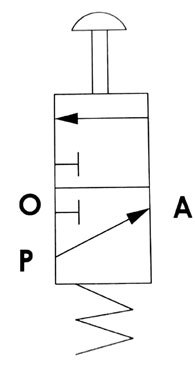

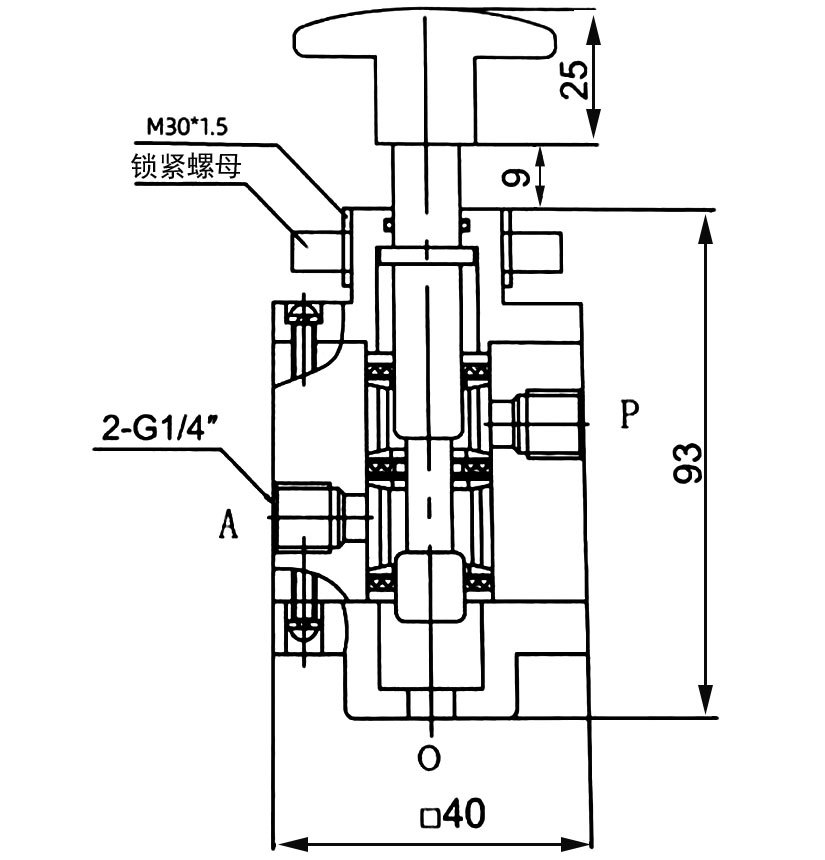

23R1-L8-D Graphical symbol: Outline and installation dimensions.
23R1-L8-F Graphical symbol: Outline and installation dimensions.
