23JR6-L8-S Manual Reversing Valve
23JR6-L8 is a combination valve of a two-position three-way reversing valve and a pressure reducing valve. It can not only switch the gas path, but also the air supply at the working port can increase or decrease the air pressure with the change of the handle position. The pressure regulation range is 0～ 1.0MPa.
Key words:
Category:
Pneumatic Components For Petroleum Equipment
Hotline：
Email：
23JR6-L8-S Manual Reversing Valve
Detail
1. Characteristic:
23JR6-L8 is a combination valve of a two-position three-way reversing valve and a pressure reducing valve. It can not only switch the gas path, but also the air supply at the working port can increase or decrease the air pressure with the change of the handle position. The pressure regulation range is 0～ 1.0MPa.
2. Symbol:
23JR6-L8
3.Technical Specification:
| Model |
23JR6
|
|||||||
| Nominal diameter mm | 6 | 8 | ||||||
|
Effective cross-sectional area S valuemm²
|
10
|
20 | ||||||
|
Maximum operating pressureMPa
|
1.00
|
|||||||
|
Operating temperatureºC
|
-40～+55
|
|||||||
| leakage Nml/min | 0 | |||||||

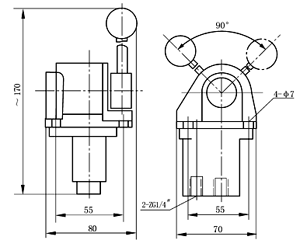

4.Outline and installation dimensions:
