TMR6-L6-D Series Handle Pressure Regulator
Detail
1. Characteristic:
The valve is available in 6mm and 10mm specifications, according to the characteristics of use: TMR6-L6-D positioning handle pressure regulating valve, TMR6-L6-F reset handle pressure regulating valve, TMR6-L6-XW limit handle pressure regulating valve valve.
The handle pressure regulating valve has the characteristics of excellent pressure regulating performance, small leakage and long service life. The valve directly adjusts the output pressure with the handle, and can realize stepless adjustment within the range of 0-1.0MPa.
2. Symbol:
TMR6-L6
3. Technical Specification:
| Model |
TMR6-L6、L10 |
||
| Nominal diameter mm | 6\ | ||
| Nominal pressure | 1MPa | ||
| Overflow characteristics | ≥300L/min | ||
| Flow characteristics | ≤0.08MPa | ||
| Pressure characteristics | ≤0.02MPa | ||
| leakage | ≤150Nml/min | ||
| Voltage regulation performance | Smooth and connected | ||
| Pressure resistance(MPa) | 1.6 | ||
| Durability (times) | 160万 | ||
| Connection method | thread | ||
| Working temperature | -40～55°C | ||

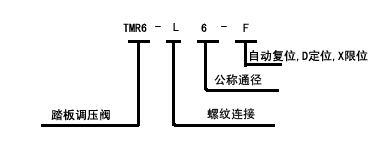

4. Model description:
5. Outline and installation dimensions
