TM-L6 Pressure Regulator
Detail
1. Characteristic:
TM-L6 pressure regulating valve is composed of a two-position two-way mechanical control valve and a pressure regulating valve in series.
2. Symbol:
3. Model description:
4.Technical Specification:
| Model | TM-L6 | ||
| Nominal diameter mm | 6 | ||
| Nominal pressure | 1.0MPa | ||
| leakage | <=125Nml/min | ||
| Flow characteristics | <=0.08MPa | ||
| Overflow feature |
>=300l/min |
||
| Pressure characteristics |
<=0.04Mpa |
||
| Voltage regulation features | Smooth and connected | ||
| Pressure resistance |
1.5MPa |
||
| Durability |
1.2*106Second-rate |
||
| Operating temperature | -38～58°C | ||

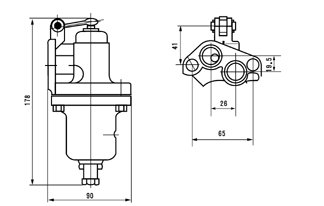

5. Outline and installation dimensions:
