4A Series Pneumatically Operated Directional Valves (4A110, 4A120, 4A130)
10: Single-headed double position 20: Double-headed double-position 30C: Double-headed three-position normally closed type
Key words:
Category:
Pneumatic Control Valve Series
Hotline：
Email：
4A Series Pneumatically Operated Directional Valves (4A110, 4A120, 4A130)
Detail

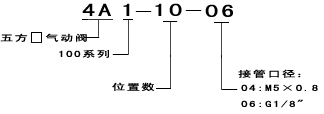

1. Model description:
Number of coils and positions.
10: Single-headed double position
20: Double-headed double-position
30C: Double-headed three-position normally closed type
30E：Double-headed three-position evacuation type
30P：Double-headed three-position pressurized type
2. Technical Specification:
| Model |
4A110-04
|
4A120-04
|
4A130C-04
|
4A130E-04
|
4A130P-04
|
4A110-06
|
4A120-06
|
4A130C-06
|
4A130E-06
|
4A130P-06
|
| Media | Air (filtered by 40 micron mesh) | |||||||||
| Movement method | Internal lead-in type | |||||||||
| Number of positions | Five□Two positions | Five□three positions | Five□Two positions | Five□three positions | ||||||
| Effective cross-sectional area |
10mm2(CV=0.56)
|
7mm2(CV=0.40)
|
12mm2(CV=0.67)
|
9mm2(CV=0.50)
|
||||||
| Catch pipe diameter |
Inlet = Outlet = Exhaust = M5
|
Inlet = Outlet = Exhaust = G1/8"
|
||||||||
| Lubrication | Not required | |||||||||
| Use of pressure MPa |
0.17～0.7
|
|||||||||
| Maximum pressure resistance PMa |
1.05
|
|||||||||
| Operating temperature ºC |
5～50
|
|||||||||
3. Outline and installation dimensions:
|

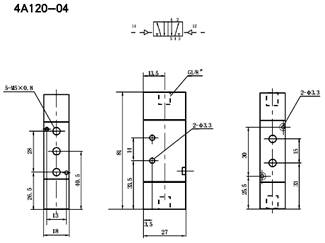

1.4A110 electronically controlled reversing valve
|
 |
|
2.4A120 electronically controlled reversing valve
|
 |
|
3.4A130 electronically controlled reversing valve
|
 |
